The SnugMag fitting guide
Measure carefully. Fit with confidence.
A few minutes with a tape measure will help you choose a curtain that covers the doorway and has room to fix around the frame.
Illustration only; not to scale. Measure your own fitting area.
01 / Measure
Start with the frame.
- Width
Measure across the outside of the frame where you plan to attach the fixing strip. Check the top, middle and bottom; note the widest measurement.
- Height
Measure from the top fixing position on the frame to the floor. Check both sides, especially if the floor is uneven.
- Check the surroundings
Allow space for the fixing strip, door handle and door swing. Check that the centre opening will remain easy to use.
02 / Choose
Match the size to the fitting area.
Compare your measurements with the available formats. The curtain must cover the opening and reach the intended fixing points. If you are between sizes, ask us to check the fit before ordering.
Ask us about your dimensions →| Width | Height |
|---|---|
| 80 cm | 200 cm |
| 90 cm | 200 cm |
| 90 cm | 210 cm |
| 90 cm | 220 cm |
| 95 cm | 210 cm |
| 100 cm | 210 cm |
| 100 cm | 220 cm |
| 105 cm | 210 cm |
| 110 cm | 210 cm |
| 110 cm | 220 cm |
Curtain dimensions, not the size of the door leaf. Width × height. Final manufacturing tolerances to be confirmed.
03 / Fit
Prepare. Position. Secure.
Prepare the frame
Check the surface is suitable, clean and dry. Test adhesive compatibility discreetly; fragile paint and textured finishes may be unsuitable.
Position the curtain
Centre the curtain on the fitting area. Keep both panels level and check the centre magnets meet before fixing the edges.
Secure and check
Apply the supplied hook-and-loop strip following the supplier instructions. Use other supplied fasteners only where appropriate for your frame.
Follow the instructions supplied with the finished product. Adhesive is not guaranteed to remove without marks, and pushpins make small holes.
04 / Check
Make everyday access easy.

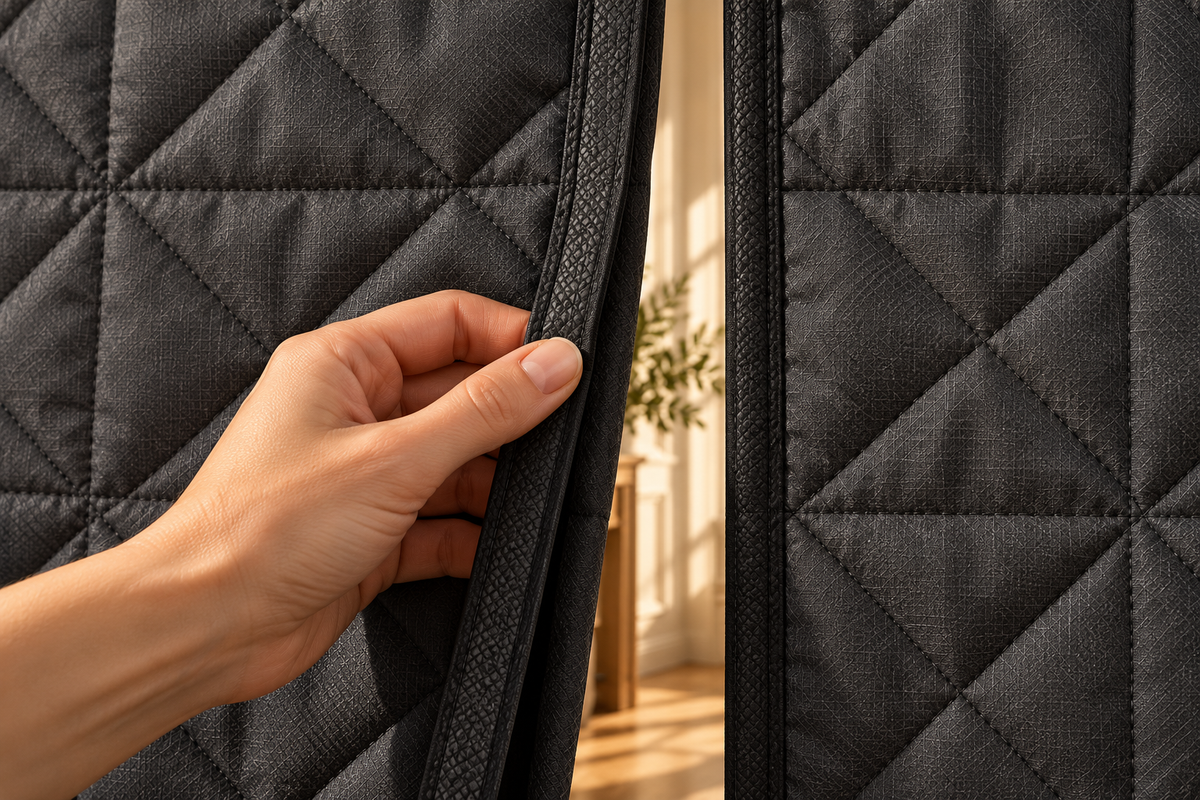

Part the seam, pass through and let the panels settle. Check the lower edge, the handle and the door swing. Do not obstruct required ventilation or an escape route.
Discover SnugMagA doorway with a few quirks?
Send your width, height and a description of the frame. We can help you compare them with the available sizes.
ContactIs this for a door or a window?
This model is a door curtain. It fixes around a doorway and opens along a magnetic centre seam. It is not a decorative window curtain on a pole.
How do I choose the right size?
Measure your intended fixing area around the full frame, from side to side and from the top fixing position to the floor. Compare width × height with the ten sizes in our fitting guide.
Does fitting require drilling?
The supplied system uses adhesive hook-and-loop strip and fastening accessories. Pushpins are also supplied and may leave marks. Whether adhesive alone is suitable depends on your frame and surface.
